3RW3003-

Producer: SIEMENS

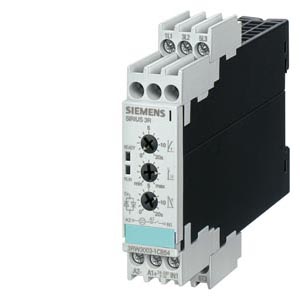

3RW3003-1CB54 screw connection
3RW3003-
SIRIUS 3RW30 for Standard Applications

Belt slip on heater blowers or a sudden buildup of water pressure in washing installations are only two of the many problems that can occur when motors generate too much power on starting. With the SIRIUS 3RW30 from 1.5 kW to 55 kW (at 400 V) you...

More information

go to configuration
Doba dodání: on request Guarantee period: 12 months
Product specifications
Suitable for three-phase induction motors 1,1
Operating voltage (V) 200 ... 400
Operating frequency (Hz) 50 ... 60
Operating current (at 40°C) (A) 3
control voltage (V) 24 ... 230
ramp-up / ramp-down (s) 0 .. 20
integrated bypass NO
intrinsic device pro NO
motor protection NO
driven phases 2
Size 22.5mm

Compare a product


Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

Terminal type

Documentation

Dokumentace na vyžádání

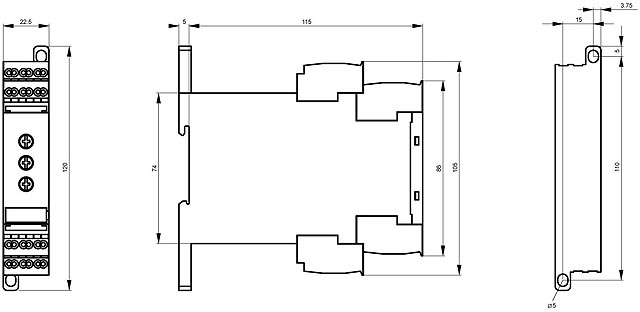

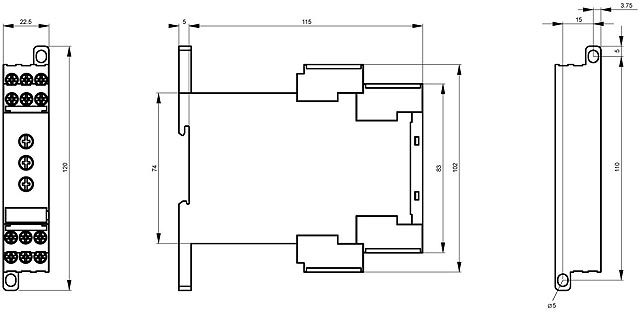

Dimensions

3RW3003-1CB54 screw connection
3RW3003-1CB54 screw connection
3RW3003-1CB54 spring loaded
3RW3003-1CB54 spring loaded

Description

SIRIUS 3RW30 for Standard Applications

Belt slip on heater blowers or a sudden buildup of water pressure in washing installations are only two of the many problems that can occur when motors generate too much power on starting. With the SIRIUS 3RW30 from 1.5 kW to 55 kW (at 400 V) you can easily avoid such problems. And the best of it all is: It is also possible to switch straight from direct to soft start because SIRIUS 3RW30 is the only soft starter in the world that offers identical sizes in a family of devices.

Advantages at a glance
Soft start
Stepless starting
Uniform connection system with screw or spring-loaded terminals
Space-saving clear cabinet design thanks to its small and compact construction
Integral bypass
Reduction of current peaks
Relief of the power supply network
Reduction of the mechanical load in the drive
Simple and fast startup and maintenance
