3RW4445-

Producer: SIEMENS

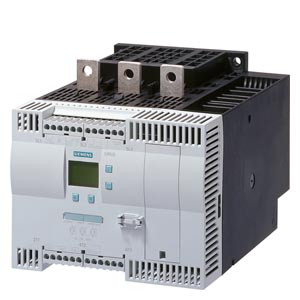

Softstarter 3RW44
3RW4445-
3RW44 for High-Feature Applications

Thanks to its outstanding functions, the SIRIUS 3RW44 all-round talent handles difficult start-up and deceleration processes in a simple and, above all, gentle manner. With its innovative torque control system, it can be used for drives with a power...

More information

go to configuration
Doba dodání: on request Guarantee period: 12 months
Product specifications
Suitable for three-phase induction motors 160kW/400V / 200KW/500V / 315kW/690V
Operating voltage (V) AC 200 ... 460 / 400 ... 600 / 400 ... 690
Operating frequency (Hz) 50 ... 60
Operating current (at 40°C) (A) 313
inside delta power (kW) 315
rated imput current inside delta circuit (A) 542
control voltage (V) AC 230
ramp-up / ramp-down (s) 1 ... 360
integrated bypass YES
intrinsic device pro YES
motor protection YES
driven phases 3
Size 210x230x298
Auxiliary contacts 3 NO / 1 Programovatelný

Compare a product


Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

Terminal type

Thermistor motor protection

(TB is only possible in connection with control supply voltage AC/DC 24V)

Control voltage

Operating power

Documentation

Dokumentace na vyžádání

Dimensions

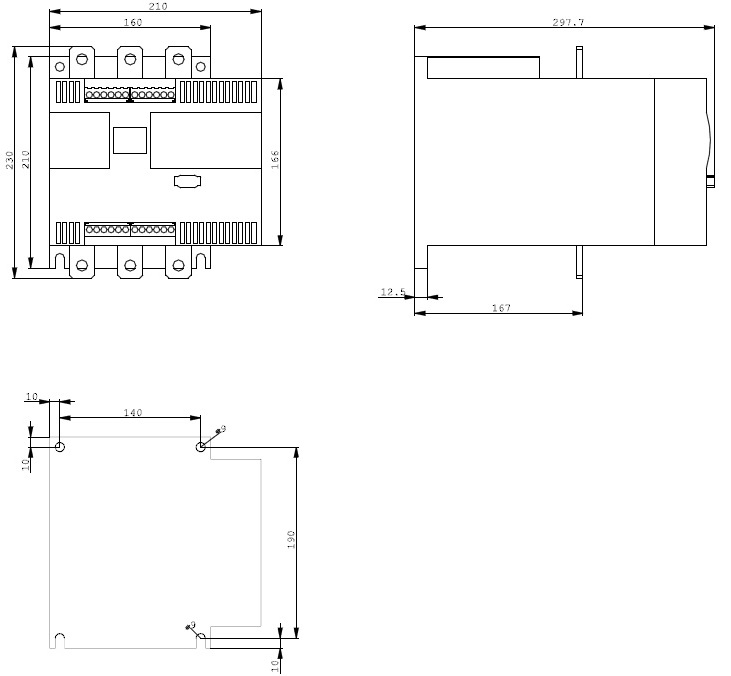

Dimensions 3RW44 ... - screw terminals
Dimensions 3RW44 ... - screw terminals

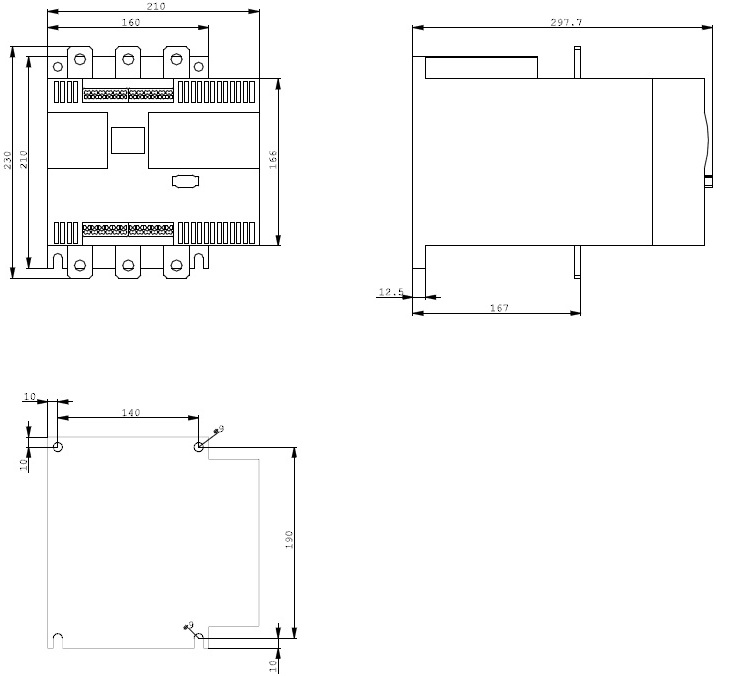

Dimensions 3RW44 ... - pring terminals
Dimensions 3RW44 ... - pring terminals

Description

3RW44 for High-Feature Applications

Thanks to its outstanding functions, the SIRIUS 3RW44 all-round talent handles difficult start-up and deceleration processes in a simple and, above all, gentle manner. With its innovative torque control system, it can be used for drives with a power output up to 710 kW at 400 V – respectively 950 hp at 460 V – in an inline circuit or up to 1200 kW at 400 V – respectively 1700 hp at 460 V – in an inside-delta circuit. Designed for simple handling, the functions are exceptionally easy to use.

Advantages at a glance
Optimum acceleration due to torque control
Simple and fast commissioning thanks to user-friendly display
Savings in size and costs due to optional inside-delta circuit
Simple integration in higher-level control units via PROFIBUS
Produkt nemá přiřazeno žádné příslušenství
