1LE1001-1CA1

Producer: SIEMENS

1LE1001-1CA1

Electric motors 1LE10 are standard low-voltage squirrel cage (induction) motors series Simotics GP (General Purpose) with aluminium body, made by Siemens. Being characterized by highest quality, wide range of available modifications and configurations including designs and certifications for global markets,...

More information

This product is not available. Please, choose an alternative.

Product specifications
power (kW)	7,50
speed (rpm)	2 950
efficiency	IE2
number of poles (pole)	2
motor housing	hliníková
protection	IP55
motor frame size	132s
insulation class	class F / B
basic voltage (V)	690/400
rated imput current (A)	13,8
output torque (Nm)	24
weight (kg)	43
motor load	S1
bearings DE/NDE	6208 2ZC3
Status	aktivní


Polarity	Efficiency	Ex-proof	Operation	Avail.	Material	Status

Compare a product

Configuration

Documentation

Description

Dimensions

Accessories

Documentation

Dimensions: PDF Dimensions Simotics GP IE1+IE2

Manual: PDF Manual Simotics GP+SD+DP (CZ)

Manual: PDF Manual Simotics GP+SD+DP (EN)

Dimensions

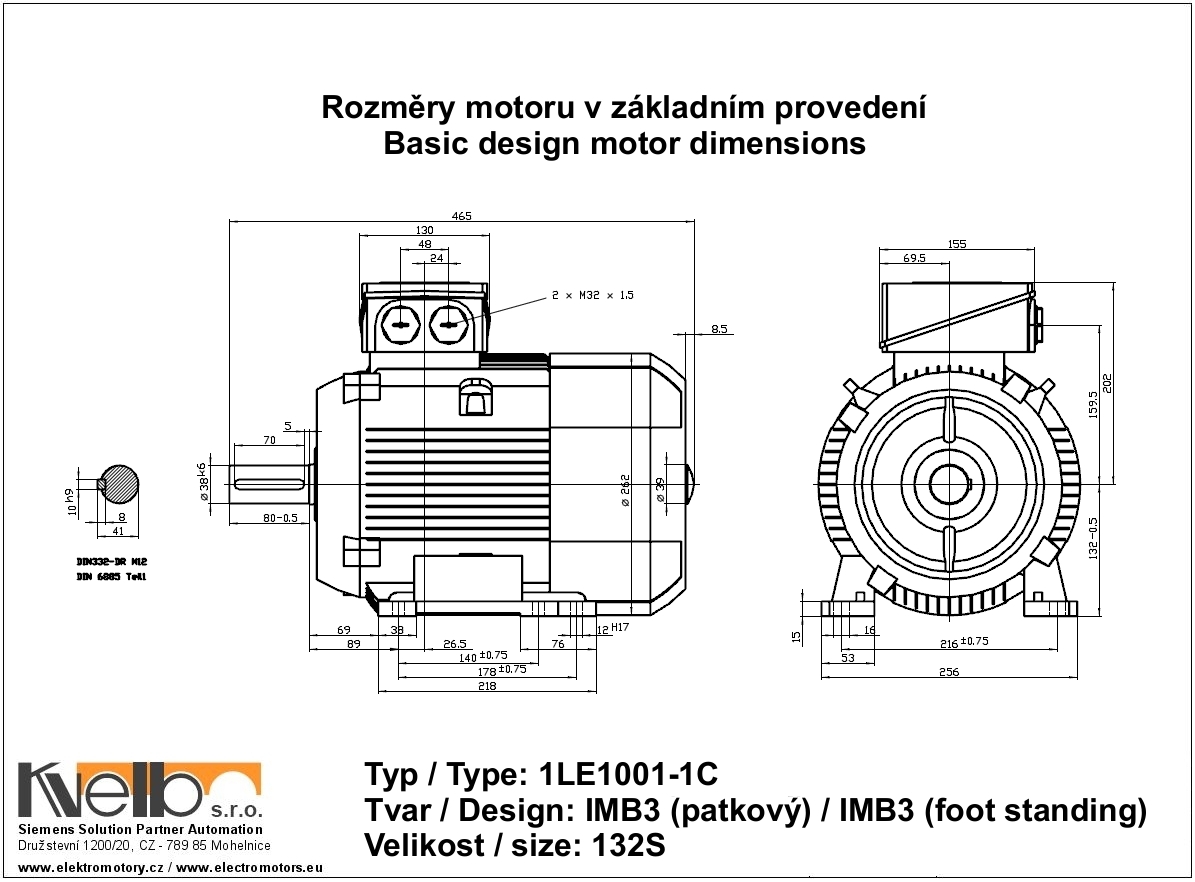

1LE1001 size 132S IMB3 (foot-standing) dimensions

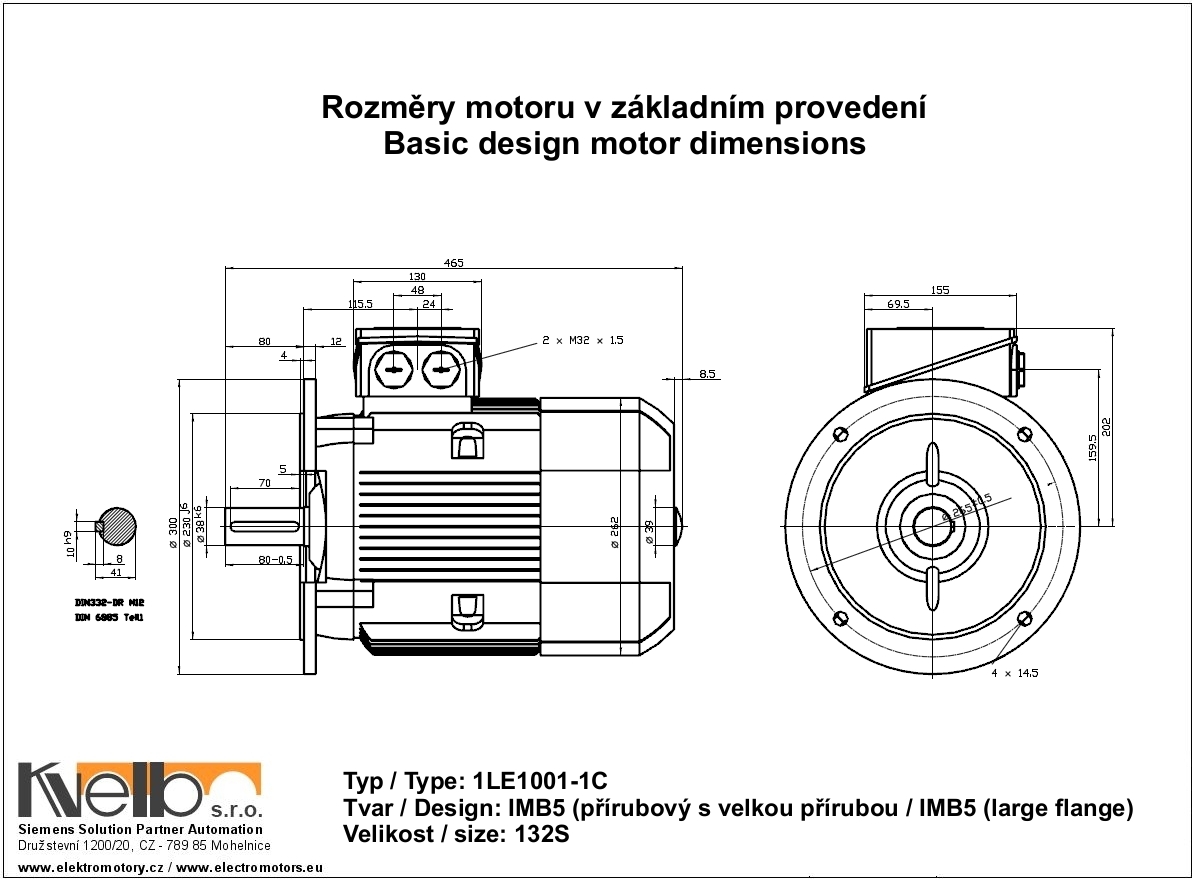

1LE1001 size 132S IMB5 (large flange) dimensions

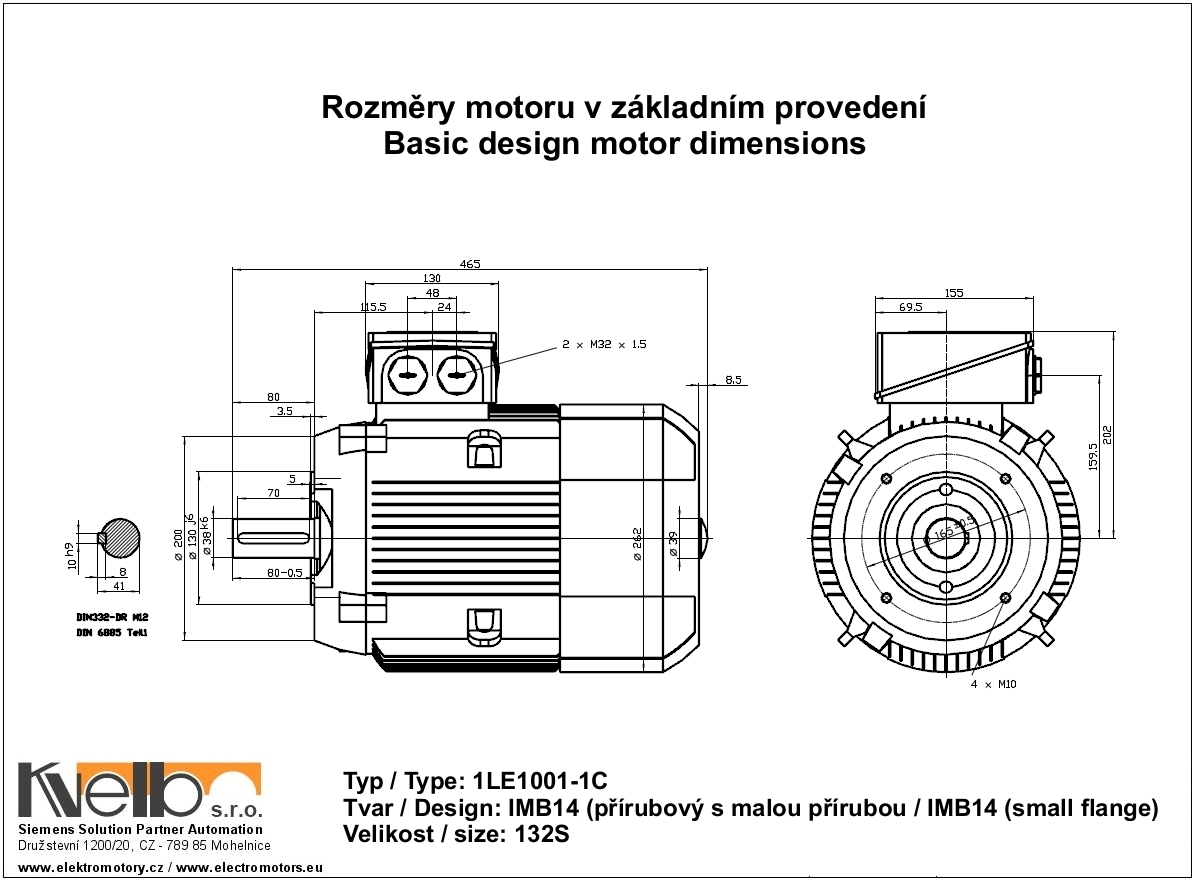

1LE1001 size 132S IMB14 (small flange) dimensions

Electric motors 1LE1

Description

Produkt nemá přiřazeno žádné příslušenství

This product is not available. Please, choose an alternative.

	2-1 - 3AC 220/380V D/Y 50Hz
	2-2 - 3AC 230/400V D/Y 50Hz (standard European voltage up to 3kW)
	2-3 - 3AC 415V Y 50Hz
	2-7 - 3AC 500V Y 50Hz
	3-3 - 3AC 380/660V D/Y 50Hz
	3-4 - 3AC 400/690V D/Y 50Hz (standard European voltage above 3kW)
	3-5 - 3AC 415V D 50Hz
	4-0 - 3AC 500V D 50Hz
	9-0 - other voltage (see configuration below)

	A - IMB3 - foot mounted design
	F - IMB5 - large flange mounted design
	G - IMV1 - large flange mounted, shaft vertically down (select canopy below)
	J - IMB35 - foot mounted with large flange
	K - IMB14 - flange mounted - small or medium flange (select in configuration below)
	N - IMB34 - foot mounted with small or medium flange (select in configuration below)

	A - without thermal protection of windings
	B - 3x PTC thermistor in windings
	C - 6x PTC thermistor in windings
	F - KTY 84-130 temperature sensor in windings
	G - 2x KTY 84-130 temperature sensors in windings
	H - 3x PT100 thermal sensors in windings
	Z - other thermal winding protection (select in configuration below)

	4 - terminal box on top
	5 - terminal box on right side (view from drive end)
	6 - termianl box on the left side (view from drive end)
	7 - terminal box on bottom

	- no brake
	F10 - brake feeding voltage DC 24V
	F11 - brake feeding voltage 1AC 230V
	F12 - brake feeding voltage AC 400V

1LE1001-1CA1

Product design (mandatory options):

1LE voltage

1LE1 design

1LE1 thermal protection

1LE1 terminal box position

Product configuration (voluntary options):

modular extensions

brake voltage

manual brake release

other pulse generators

cooling method

other voltages

bearings

locating bearings

regreasing device

test certificates

national certificates and standards

protection degree

terminal inputs position

shaft extension

shaft sealing

rotor balancing

windings heating

windings and insulation, increased ambient tempera

low ambient temperature

increased air humidity

selection of flange size for IMB14 and IMB34

Other thermal protections of windings

1LE patky

Documentation

Dimensions

Description

	- basic design - no extensions
	F01 - spring operated brake (please select voltage below)
	G40 - prepared for mountings, center hole in shaft NDE only

	- basic design - no manual brake release
	F50 - hand release for brake

	- basic design - no extensions
	G01 - IRC type HTL (10-30VDC, 1024 pulses per turn) 1XP8012-10
	G02 - IRC type TTL (5V DC, 1024 pulses per turn) 1XP8012-20
	G04 - rotary pulse encoder LL 861 900 220
	G05 - rotary pulse encoder HOG 9D 1024 I
	G06 - rotary pulse encoder HOG 10D 1024 I
	G11 - Incremental encoder Kübler Sendix 5020 HTL
	G12 - Incremental encoder Kübler Sendix 5020 TTL

	- basic design, IC411 - self cooling (plastic fan)
	F70 - IC416 - Ventilation unit 1AC230V / 3AC400V IP65
	F76 - IC411 - self cooling (metal fan)
	F90 - IC410 - without fan and fan cover

	- standard voltage (acc. to motor design)
	M1A - 220VD/380VY 60Hz; 60Hz power output
	M1B - 380VD/660VY 60Hz; 60Hz power output
	M1C - 440VY 60Hz; 60Hz power output
	M1D - 440 VD 60Hz; 60Hz power output
	M1E - 460VY 60Hz; 60Hz power output
	M1F - 460VD 60Hz; 60Hz power output
	M1G - 575VY 60Hz; 60Hz power output
	M1H - 575VD 60Hz; 60Hz power output
	M1Y - other voltage (define: ...V ...Hz ...kW)
	M2A - 220VD/380VY 60Hz; 50Hz power output
	M2B - 380VD/660VY 60Hz; 50Hz power output
	M2C - 440VY 60Hz; 50Hz power output
	M2D - 440VD 60Hz; 50Hz power output
	M2E - 460VY 60Hz; 50Hz power output
	M2F - 460VD 60Hz; 50Hz power output
	M2G - 575VY 60Hz; 50Hz power output
	M2H - 575VD 60Hz; 50Hz power output
	M3A - 400VD 87Hz; 87Hz power output

	- basic design bearings
	L22 - strengthened bearing on drive end
	L25 - strenghtened bearings drive side and fan side

	- basic design
	L04 - locating bearing NDE
	L20 - locating bearing on DE (drive end)
	L21 - locating bearing on NDE (non-drive end)

	- without test certificates
	B02 - inspection certificate 3.1 in acc. with EN10 204

	- without national certificates
	D30 - electrical according to NEMA MG1-12
	D31 - design according to UL with "Recognition Mark"
	D40 - Canadian regulations (CSA)

	- basic design
	H20 - increased degree of protection - IP65
	H22 - increased degree of protection - IP56 (non-heavy sea)

	- basic design
	L05 - 2ND standard shaft extensions
	Y58 - non-standard shaft DE (we will ask you for specification)
	Y59 - non-standard shaft NDE (we will ask you for specification)

	- basic design (grade A)
	L00 - vibration severity grade B

	- basic design (up to +40°C, F/B)
	N03 - incr. ambient temperature to +55°C (insulation F/F)
	N05 - amb. temperature +45°C, F/B, derating approx. 4%
	N06 - amb. temperature +50°C, F/B, derating approx. 8%
	N07 - amb. temperature +55°C, F/B, derating approx. 13%
	N08 - amb. temperature +60°C, F/B, derating approx. 18%
	N11 - incr. ambient temperature to +60°C (insulation H)

	- basic design (from -20°C)
	D03 - low ambient temperature (from -40°C)
	D04 - low ambient temperature (from -30°C)

	- basic design (terminal box entry on right side)
	R10 - connection box entry from DE side
	R11 - connection box entry from NDE side
	R12 - connection box entry from left side

	- basic design (CD ring)
	H23 - oiltight shaft sealing ring, for flange mounted motors

	- basic design - no heating
	Q02 - windings heater 230V
	Q03 - windings heater 115V

	- basic design (0-30g water per m3 of air)
	N30 - increased humidity 30 - 60 g water per m3 of air
	N31 - increased humidity 60 - 100 g water per m3 of air

	- without B14 or B34 flange selection
	- small flange IMB14
	P01 - medium flange

	- None
	Q2A - NTC THERMISTOR FOR SHUTDOWN
	Q3A - 3x TEMPERATURE MONITORS FOR SHUTDOWN

	- feet casted with body (non-removable)
	H01 - screwed-on feet
