1MA7106-2BA

Producer: SIEMENS

1MA7106-2BA

Three-phase squirrel-cage ex-proof motor for Zone 1. Protection degree EEx e IIC T1-T2 ot T3. Not suitable for frquency converter operation (!)

More information

go to configuration

production terminated

Product specifications
power (kW)	2,50
speed (rpm)	2 865
efficiency	NA
number of poles (pole)	2
motor housing	Aluminium
protection	IP55
motor frame size	100L
insulation class	F
basic voltage (V)	400Y/230D 50Hz
rated imput current (A)	9,22/5,34
output torque (Nm)	8,30
weight (kg)	21
ATEX certification	EEx e IIC T1-T3
motor load	S1
bearings DE/NDE	6206 2ZC3/6205 2ZC3


Polarity	Efficiency	Ex-proof	Operation	Avail.	Material	Status

Compare a product

Configuration

Documentation

Description

Dimensions

Accessories

Documentation

Complete catalogue: PDF Complete catalogue (CZ)

Dimensions

1MA710 IMB3 (foot-standing) dimensions

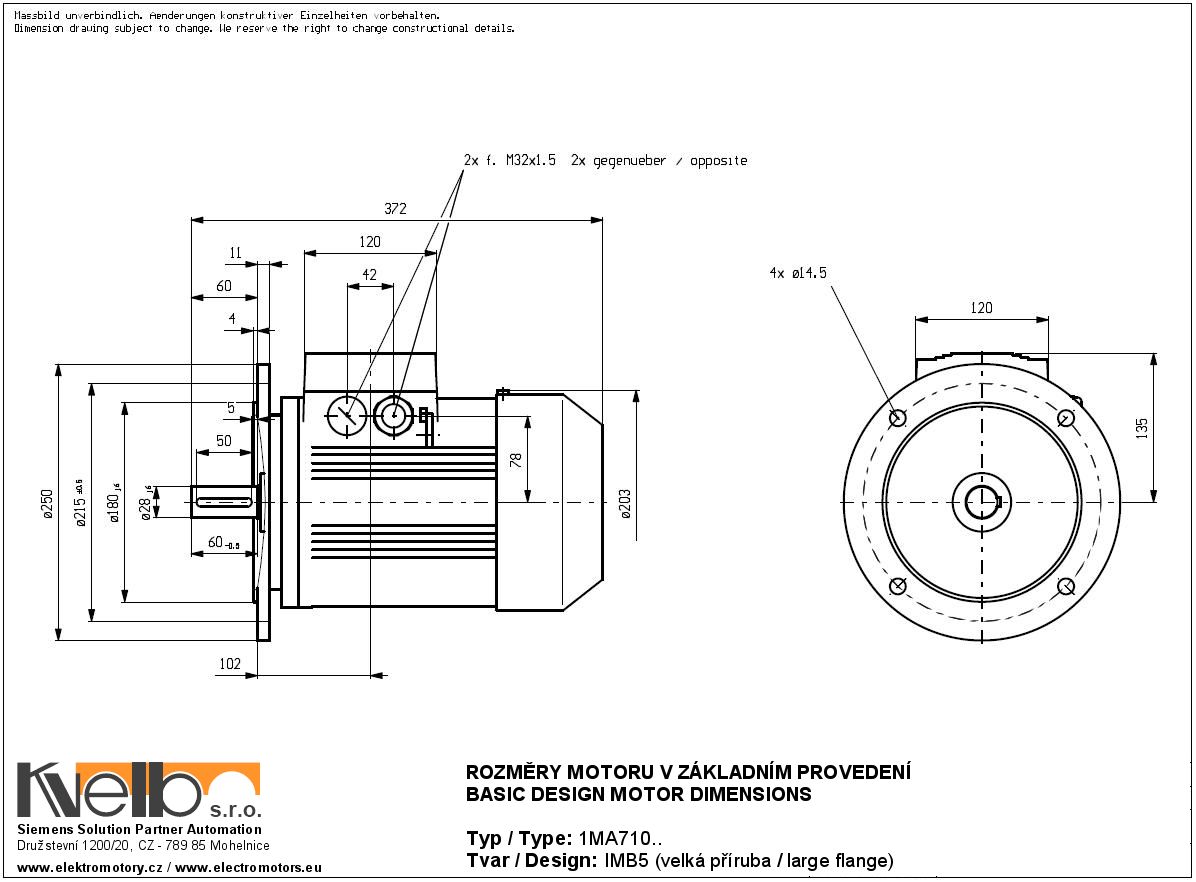

1MA710 IMB5 (large flange) dimensions

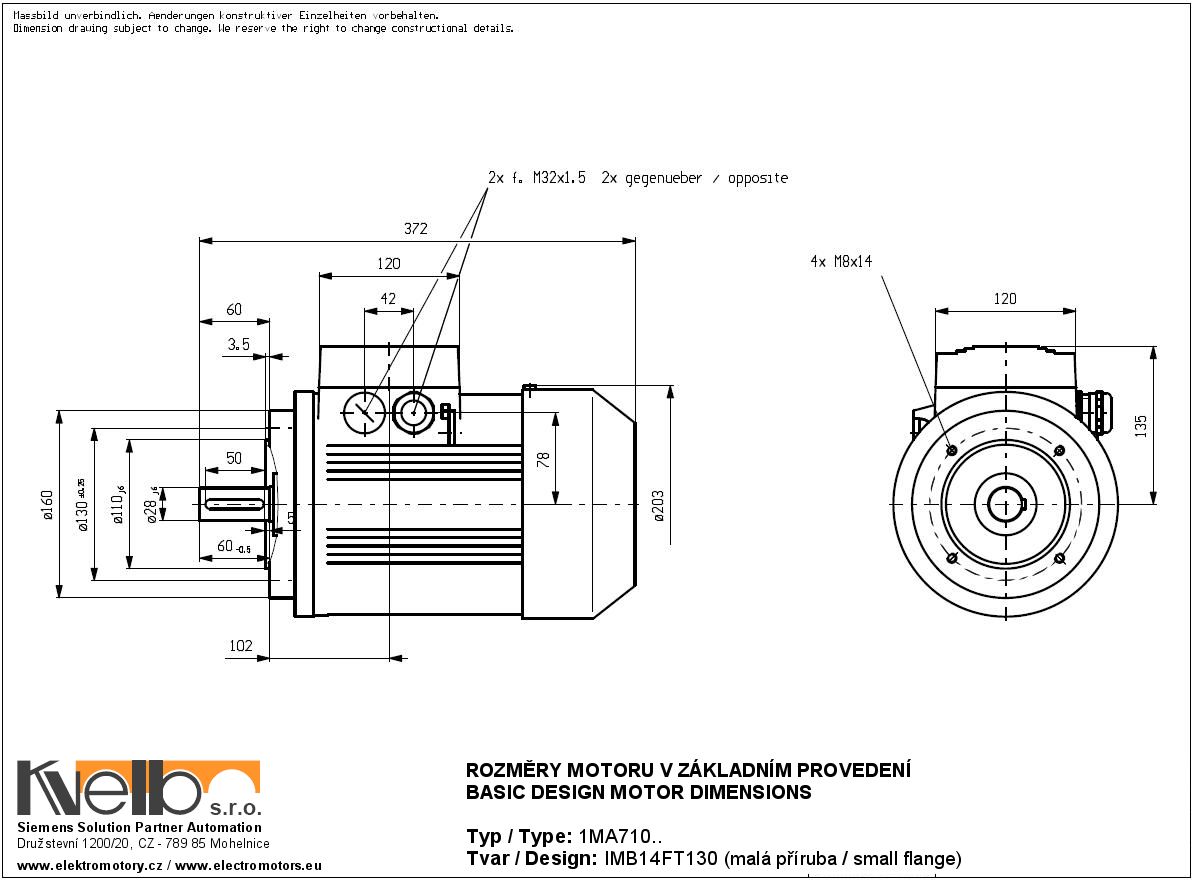

1MA710 IMB14FT (small flange) dimensions

Description

Three-phase squirrel-cage ex-proof motor for Zone 1. Protection degree EEx e IIC T1-T2 ot T3. Not suitable for frquency converter operation (!)
