1MA7080-6BA

Producer: SIEMENS

1MA7080-6BA

Three-phase squirrel-cage ex-proof motor for Zone 1. Protection degree EEx e IIC T1-T2 ot T3. Not suitable for frquency converter operation (!)

More information

go to configuration

production terminated

Product specifications
power (kW)	0,37
speed (rpm)	920
efficiency	NA
number of poles (pole)	6
motor housing	Aluminium
protection	IP55
motor frame size	80M
insulation class	F
basic voltage (V)	400Y/230D 50Hz
rated imput current (A)	1,98/1,15
output torque (Nm)	3,60
weight (kg)	8,30
ATEX certification	EEx e IIC T1-T3
motor load	S1
bearings DE/NDE	6004 2ZC3/6004 2ZC3


Polarity	Efficiency	Ex-proof	Operation	Avail.	Material	Status

Compare a product

Configuration

Documentation

Description

Dimensions

Accessories

Documentation

Complete catalogue: PDF Complete catalogue (CZ)

Dimensions

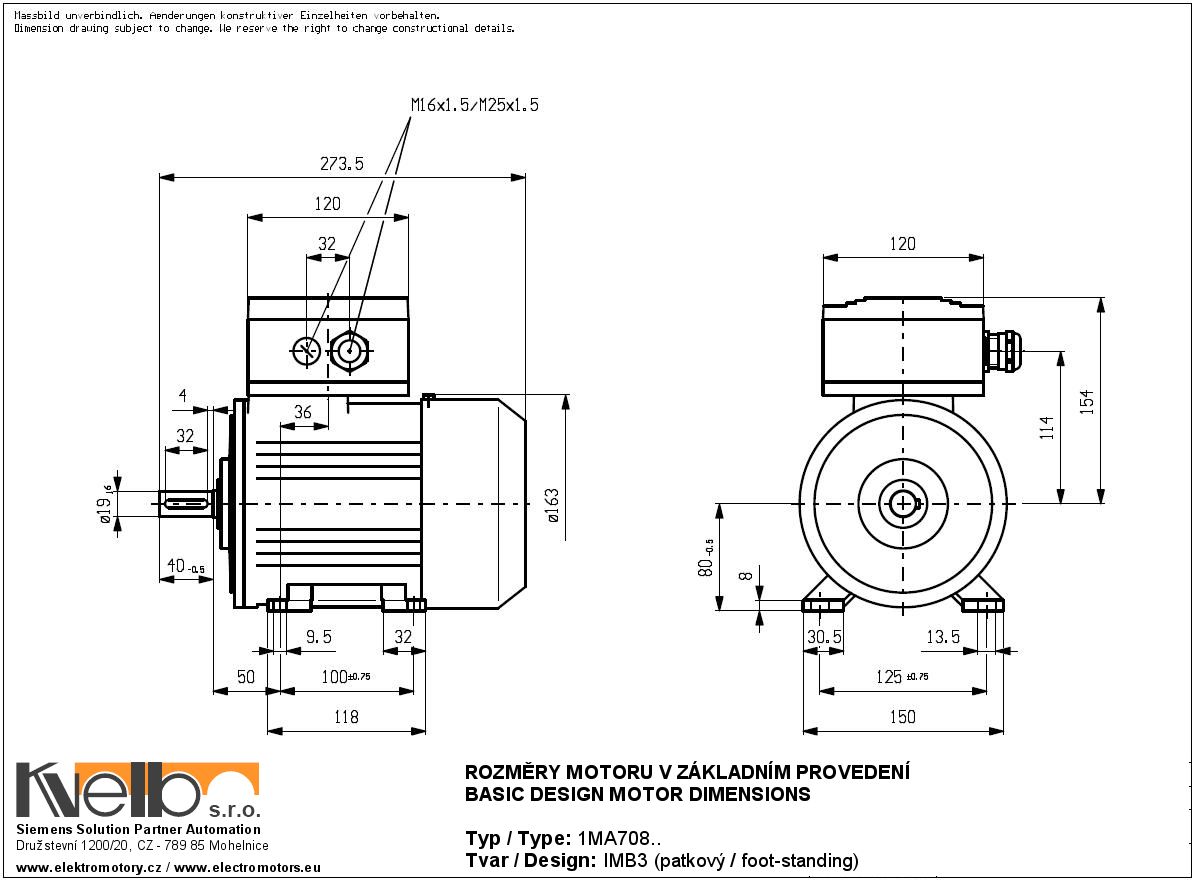

1MA708 IMB3 (foot-standing) dimensions

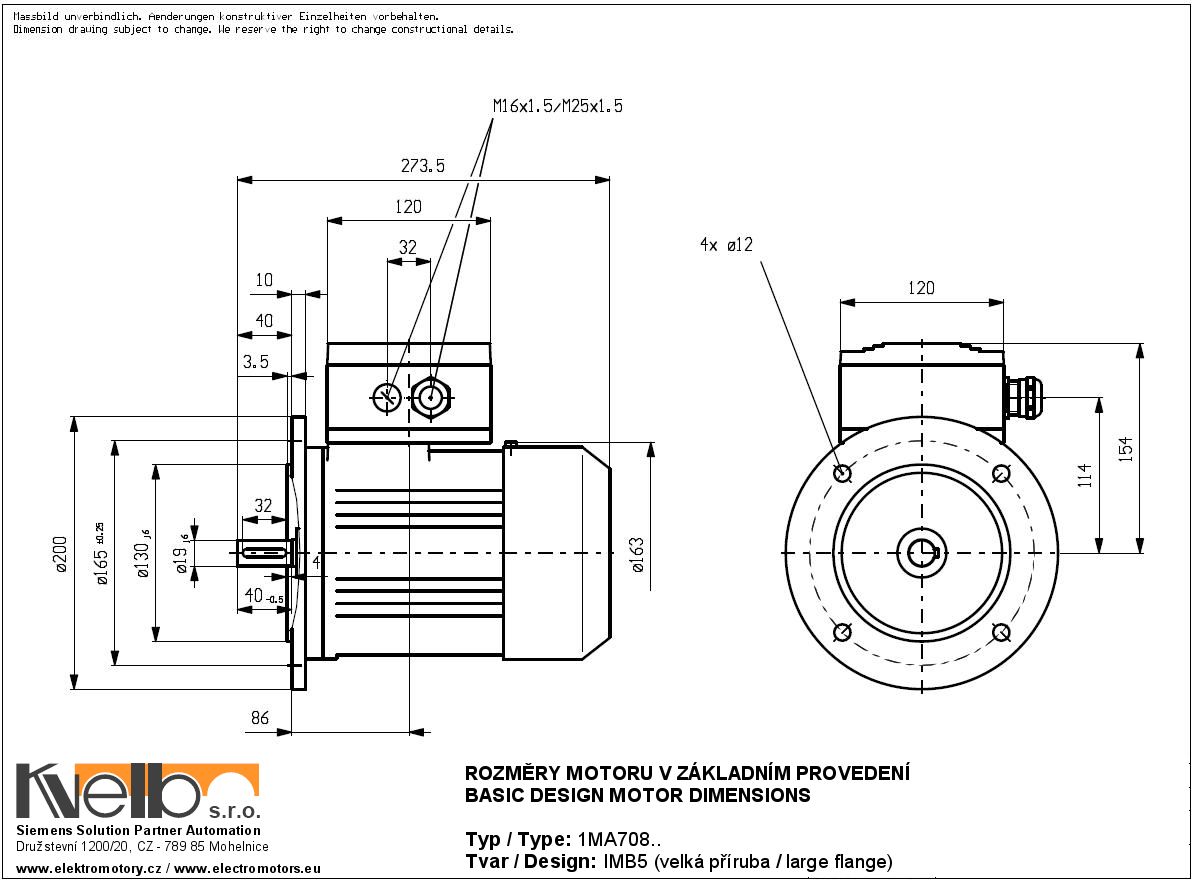

1MA708 IMB5 (large flange) dimensions

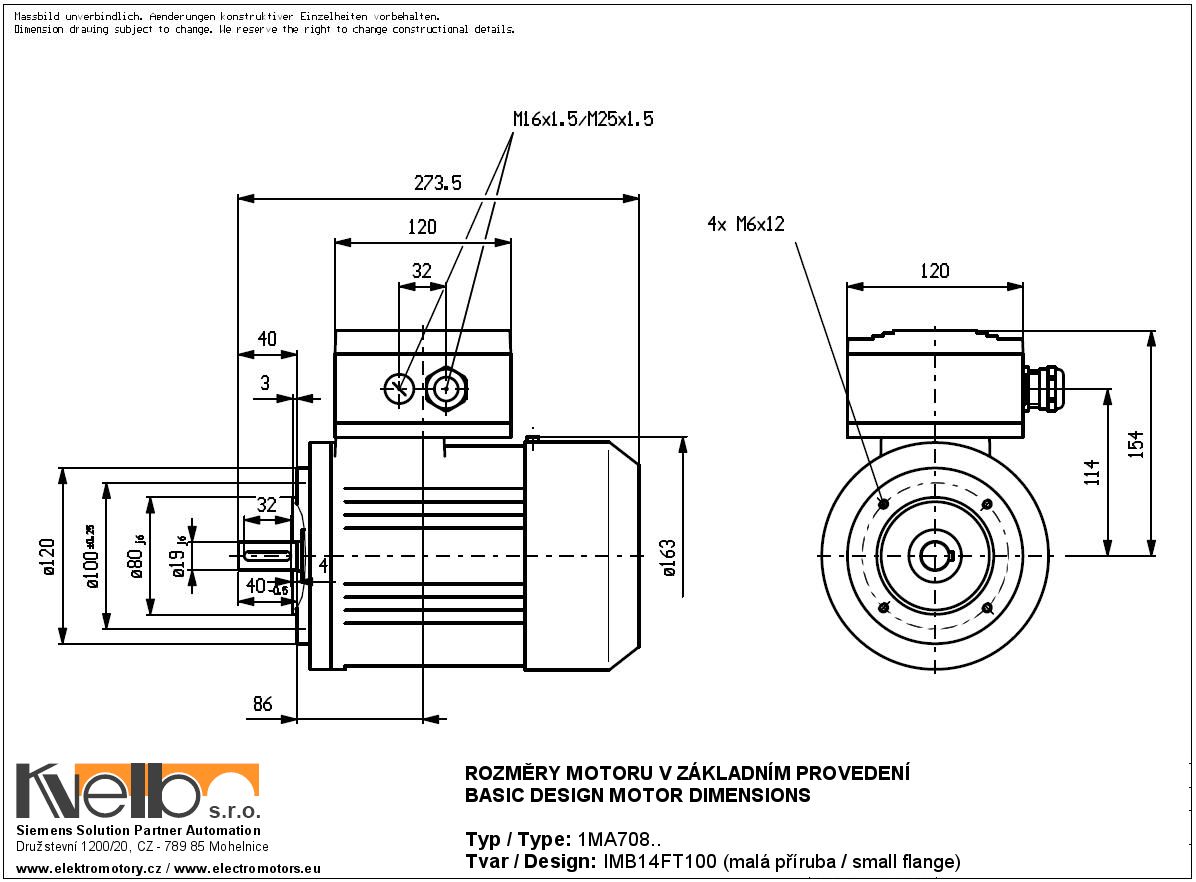

1MA708 IMB14FT (small flange) dimensions

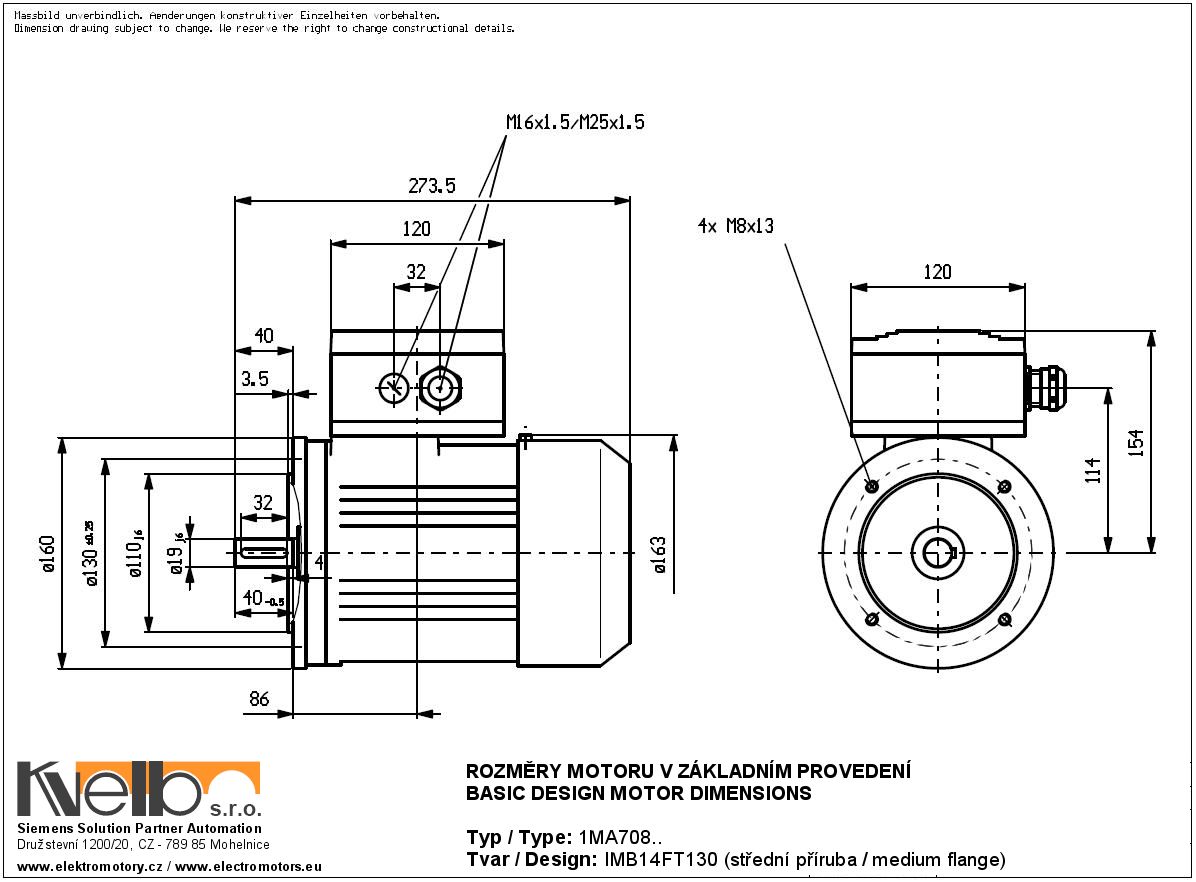

1MA708 IMB14FT (medium flange) dimensions

Description

Three-phase squirrel-cage ex-proof motor for Zone 1. Protection degree EEx e IIC T1-T2 ot T3. Not suitable for frquency converter operation (!)

Produkt nemá přiřazeno žádné příslušenství

K-Drives has established itself primarily as an important, globally oriented B2B supplier, specialized in perfect solutions for large-volume and long-term orders.
To free up our capacity for what we do best, we are leaving the area of retail and B2C sales.

To the thousands of our retail customers who have been buying from us during 30 years of our history, we thank them for their trust and support.

Thanks to this step, we will bring larger B2B and project customers from all over the world even better service in the technical and commercial spheres, the most modern methods of communication and data exchange, and a more individual approach.

Our popular configurator remains in operation, but the webshop changes to a platform for entering requests (it is no longer possible to buy directly online).

Thank you for your understanding.

	1 - 400/230V Y/D 50Hz, 460VY 60Hz (basic voltage up to 3kW)
	3 - 500VY 50Hz
	6 - 400/690V D/Y 50Hz, 460VD 60Hz (basic voltage from 3kW)
	9 - other voltage - choose in config. bellow

	0 - IMB3 - footstanding design
	1 - IMB5 - flange design (large flange)
	2 - IMB14 - flange design (small flange)
	3 - IMB14 - flange design (medium flange)
	4 - IMV1 - flange design (large flange) with canopy for vertical position
	6 - IMB35 - combined design foot-standing with large flange
	7 - IMB34 - combined design foot-standing with small flange
	9 - other design - choose in configuration below

	- standard voltage (acc. to motor design)
	L1C - 3AC 50Hz 415VY
	L1D - 3AC 50Hz 415VD
	L1R - 3AC 50Hz 220VD/380VY
	L1R - 3AC 50Hz 380VD/660VY
	L2A - 3AC 60Hz 220VD/380VY (50Hz power output)
	L2C - 3AC 60Hz 380VD/660VY (50Hz power output)
	L2Q - 3AC 60Hz 440VY (50Hz power output)
	L2R - 3AC 60Hz 440VD (50Hz power output)
	L2S - 3AC 60Hz 460VY (50Hz power output)
	L2T - 3AC 60Hz 460VD (50Hz power output)
	L2U - 3AC 60Hz 575VY (50Hz power output)
	L2V - 3AC 60Hz 575VD (50Hz power output)

	- basic design (terminal box entry on right side)
	K83 - rotation of the connection box through 90°, entry from DE
	K84 - rotation of the connection box through 90°, entry from NDE
	K85 - rotation of the connection box through 180°

	- basic design
	K16 - second standard shaft extension
	K17 - Oiltight radial sealing ring
	Y58 - non-standard shaft DE (we will ask you for specification)
	Y59 - non-standard shaft NDE (we will ask you for specification)

1MA7080-6BA

Product design (mandatory options):

Motor voltage

Motor design

Product configuration (voluntary options):

thermal protection

other voltages

locating bearings

test certificates

national certificates and standards

protection degree

terminal box position

terminal inputs position

shaft extension

rotor balancing

windings and insulation, increased ambient tempera

increased air humidity

other motor design

Documentation

Dimensions

Description

	- basic design - no thermal protection
	A11 - 3x PTC thermistor in windings
	A12 - 6x PTC thermistor in windings

	- basic design
	K94 - locating bearing DE
	L04 - locating bearing NDE

	- without test certificates
	B02 - inspection certificate 3.1 in acc. with EN10 204

	- without national certificates
	D01 - CCC (China Compulsory Certification)
	K30 - VIK design

	- basic design
	K50 - IP65 degree of protection
	K52 - IP56 degree of protection (non-heavy-sea)

	- basic design - terminal box on top
	K09 - terminal box on right side
	K10 - terminal box on left side

	- basic design (0-30g water per m3 of air)
	C19 - increased air humidity 30 - 60g water per m3 of air
	C26 - increased air humidity 60 - 100g water per m3 of air

	- motor design acc. to standard design selection
	M1F - IMV5 with canopy
	M2A - IMV18 with canopy (small flange)
	M2B - IMV18 with canopy (non-standard flange)
	M2C - IMB34 with non-standard flange

	- basic design (grade A)
	K02 - vibration severity grade B
