6SL3300-1AE32-5AA0

Producer: SIEMENS

6SL3300-1AE32-5AA0

go to configuration

Doba dodání: on request

Guarantee period: 12 months

Product specifications
Description	Brzdný modul G120/PM240 - Napětí meziobvodu DC510...720V, Brzdný modul 50kW/250kW

Compare a product

Configuration

Documentation

Description

Dimensions

Accessories

Product configuration (voluntary options):

The product can not be configured.

Documentation

Dokumentace na vyžádání

Dimensions

Description

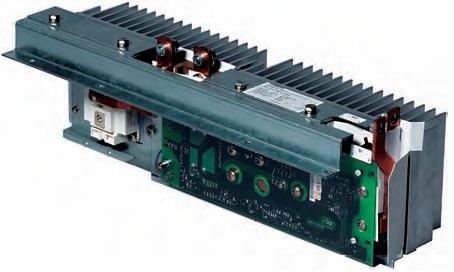

A Braking Module and the matching external braking resistor are required to bring drives to a controlled standstill in the event of a power failure (e.g. emergency retraction or EMERGENCY STOP Category 1) or limit the DC link voltage for brief periods of generator operation. The Braking Module includes the power electronics and the associated control circuit. During operation, the DC link energy is converted to heat loss in an external braking resistor. Braking Modules function autonomously. The Braking Module is designed for installation in PM240 Power Modules, frame size FSGX and is cooled by the Power Module fan. The supply voltage for the electronics is taken from the DC link. The Braking Module is connected to the DC link using the busbar sets included in the scope of delivery. The activation threshold of the Braking Module can be adjusted by means of a DIP switch. The braking power values specified in the technical specifications apply to the upper activation threshold.
