6SL3246-0BA22-1FA0

Producer: SIEMENS

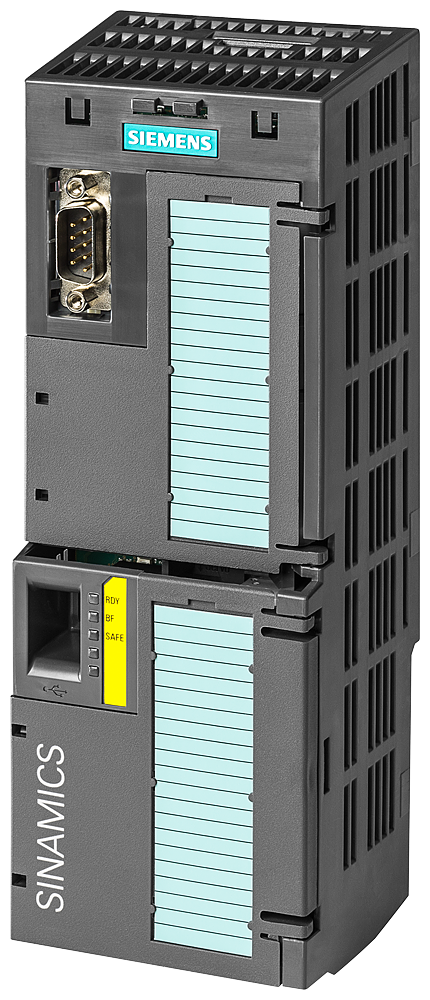

Řídicí jednotka CU250S-2
6SL3246-0BA22-1FA0
Controlling of the motor according to the various control procedures is executed via the control unit. Apart from the control unit, further functions are available which can be adjusted by parameterization to the corresponding application. In the case of SINAMICS G120, several control units are available...

More information

go to configuration
Doba dodání: on request Guarantee period: 12 months
Product specifications
digital inputs (DIN) 11
Digital outputs (DO) 3
analog inputs (AIN) 4
analog output (AOUT) 2
Fail-safe digital inputs (FSDI) AŽ 3
control methods U/f lineární/kvadratické/parametrizované,FCC, vektorové se snímačem, momentové se snímačem
Integrated pulse encoder evaluation YES
Motor temperature sensors PTC/KTY
Brake-Control relé
Communication, port 1 point-to-point PROFINET
Communication, port 2 fieldbus USB
Ethernet interface YES
MMC slot (MMC) YES

Compare a product


Configuration

Documentation

Description

Dimensions

Accessories

Product configuration (voluntary options):

The product can not be configured.

Documentation

Manual: PDF CU250S-2 compact operating instruction

Dimensions

Description

Controlling of the motor according to the various control procedures is executed via the control unit. Apart from the control unit, further functions are available which can be adjusted by parameterization to the corresponding application. In the case of SINAMICS G120, several control units are available in various designs.

Produkt nemá přiřazeno žádné příslušenství
