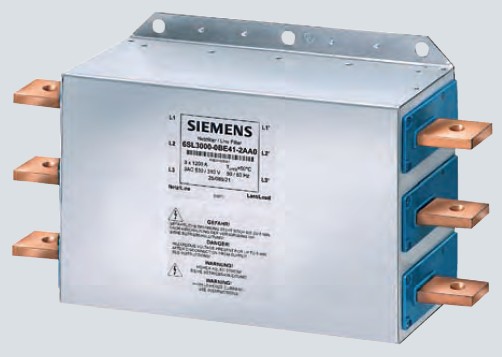

6SL3000-0BE34-4AA0

Producer: SIEMENS

6SL3000-0BE34-4AA0

Filter for inverters without an internal filter for

3 AC 200 V to 240 V, frame sizes A and B
3 AC 380 V to 480 V, frame size A, FX, GX
Filters for frame sizes FX and GX are only permitted to be used in combination with a line commutating choke. All other inverters with the...

More information

go to configuration

Doba dodání: on request

Guarantee period: 12 months

Product specifications
Description	Sinamics/Micromaster EMC filtr třídy A,3AC 380-480 V,440A Pro měniče konstrukční velikosti FX/GX

Compare a product

Configuration

Documentation

Description

Dimensions

Accessories

Product configuration (voluntary options):

The product can not be configured.

Documentation

Dokumentace na vyžádání

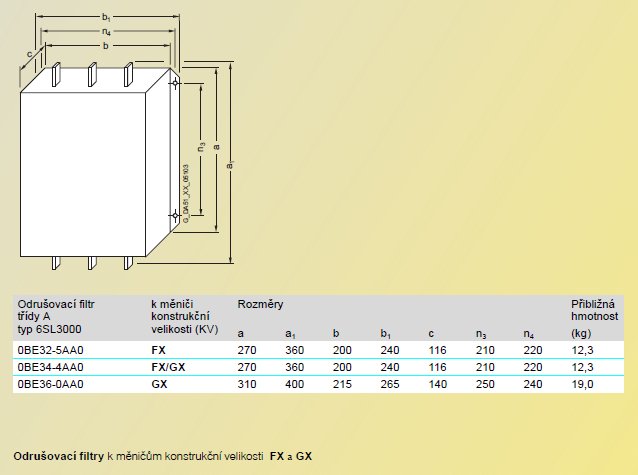

Dimensions

EMC filters for Sinamics/ Micromaster frame size FX,GX

Description

Filter for inverters without an internal filter for

3 AC 200 V to 240 V, frame sizes A and B
3 AC 380 V to 480 V, frame size A, FX, GX

Filters for frame sizes FX and GX are only permitted to be used in combination with a line commutating choke. All other inverters with the exception of inverters for 500 V to 600 V can be supplied with an internal Class A filter. The requirements are fulfilled using shielded cables with a max. length of 25 m.

Produkt nemá přiřazeno žádné příslušenství
