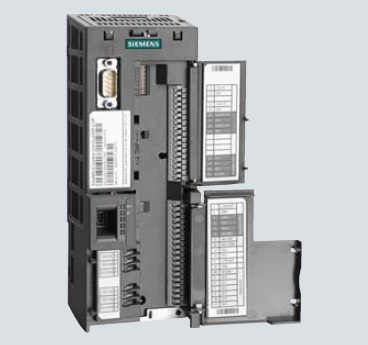

6SL3243-0BB30-1PA3

Producer: SIEMENS

6SL3243-0BB30-1PA3

go to configuration

Doba dodání: on request

Guarantee period: 12 months

Product specifications
digital inputs (DIN)	6
Digital outputs (DO)	3
analog inputs (AIN)	4
analog output (AOUT)	2
control methods	U/f lineární/kvadratické/parametrizované,FCC, vektorové bez snimače, momentové bez snímače
Integrated pulse encoder evaluation	NO
Motor temperature sensors	PTC/KTY, Klixon
Brake-Control	Externí relé
Communication, port 1 point-to-point	USS/RS232/USB
Communication, port 2 fieldbus	Profibus
Ethernet interface	NO
MMC slot (MMC)	NO

Compare a product

Configuration

Documentation

Description

Dimensions

Accessories

Product configuration (voluntary options):

The product can not be configured.

Documentation

Manual: PDF Uvedení do provozu

Dimensions

Description

Controlling of the motor according to the various control procedures is executed via the control unit. Apart from the control unit, further functions are available which can be adjusted by parameterization to the corresponding application. In the case of SINAMICS G120, several control units are available in various designs. The specific control unit (CU230P-2) is ideal for the use with drives with integrated technology functions for pump, fan and compressor applications. The I/O interface, the fieldbus interfaces and the additional software functions optimally support these applications.

Accessories

Zatržené příslušenství bude vloženo do košíku s produktem

Akce	Název zboží	Atributy	Cena bez DPH	Proklik
	6SL3252-0BB00-0AA0	Relé pro ovládání brzdy. Včetně kabelu pro připojení k výkonové jednotce ;	53,83 EUR	Detail - 6SL3252-0BB00-0AA0
	6SL3254-0AM00-0AA0	Paměťová karta MMC ;	0,00 EUR	Detail - 6SL3254-0AM00-0AA0
	6SL3255-0AA00-2CA0	propojovací sada Sinamics - PC (USB) ;	26,52 EUR	Detail - 6SL3255-0AA00-2CA0
	6SL3255-0AA00-4HA0	IOP Handheld. Součástí dodávky je:IOP, Skříň handheld, Akumulátory (4 AA), Nabíječka (mezinárodní), Propojovací kabel RS232 (délka 3 m, použitelný jen pro SINAMICS G120 a SIMATIC ET 200S FC), USB kabel (délka 1 m). Pro CU240E .. , CU240S .. Je nutná 6SL3255-0AA00-2AA1 (viz. příslušenství) ;	0,00 EUR	Detail - 6SL3255-0AA00-4HA0
	6SL3255-0AA00-4JA0	Inteligentní operační panel IOP ;	112,58 EUR	Detail - 6SL3255-0AA00-4JA0
	6SL3256-0AP00-0JA0	BOP2 / IOP - sada pro montáž na dveře ;	22,74 EUR	Detail - 6SL3256-0AP00-0JA0
	6SL3264-1EA00-0FA0	Sada pro připojení stínění, pro řídicí jednotky CU230P-2 ;	11,25 EUR	Detail - 6SL3264-1EA00-0FA0
	Potenciometr 5kOhm + knoflík	Potenciometr 5kOhm + přístrojový knoflík ;	2,80 EUR	Detail - Potenciometr 5kOhm + knoflík
