6SL3210-1KE22-6

Producer: SIEMENS

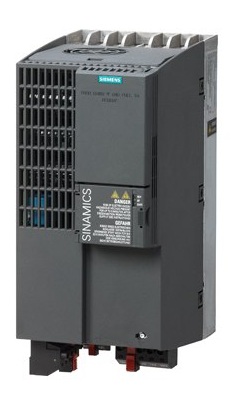

G120C FSC
6SL3210-1KE22-6
SINAMICS G120C

SINAMICS G120C has been especially designed for machine manufacturers who are looking for an economic, space-saving and easy-to-operate frequency converter providing a multitude of functions. This device combines in particular compactness with superior power density and...

More information

go to configuration
Doba dodání: on request Guarantee period: 12 months
Product specifications
power (kW) 11
input voltage (V) 3 x 380-480V, 50/60 Hz
Output current HO (A) 16,5
Output current LO (A) 25
Overload HO 2.0 x IH po 3 s a dále 1,5 x IH po 57 s při cyklu 300s
Overload LO 1,6 x IL po 3 s a dále 1,1 x IL po 57 s při cyklu 300 s
digital inputs (DIN) 6
Safety Integrated functions (SIF) 1 - STO
analog inputs (AIN) 1
Digital outputs (DO) 2
analog output (AOUT) 1
control methods U/f, U/f ECO, vektor
communication interf volitelně USS/Modbus RTU / PROFIBUS DP / CANopen
Size C
protection IP20

Compare a product


Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

EMC filter

Integrated communication interface

Documentation

Dokumentace na vyžádání

Dimensions

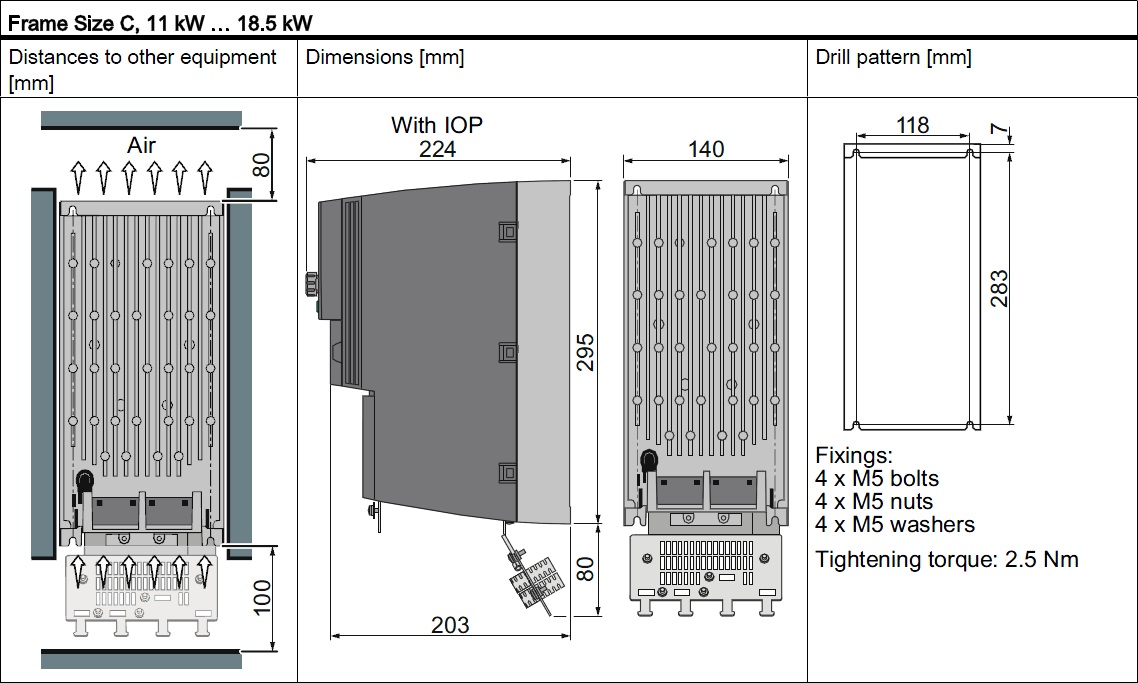

G120C FSC - dimensions
G120C FSC - dimensions

Description

SINAMICS G120C

SINAMICS G120C has been especially designed for machine manufacturers who are looking for an economic, space-saving and easy-to-operate frequency converter providing a multitude of functions. This device combines in particular compactness with superior power density and is characterized by fast installation and commissioning, user-friendly connections resp. easy-to-use commissioning tools.
With its three frame sizes, it covers a performance range of 0.55 kW to 18.5 kW. The energy-efficient device serves the most common communication interfaces and is an integral part of Totally Integrated Automation. SINAMICS G120C – a brief Summary of its Strengths
Smallest size
Compact, small drive, high power density
fast mechanical installation (i.e. pluggable terminals)
Side-by-side mounting without derating
Easy to use
Simple, optimized commissioning
Effective, adequate parameter set (simple storing and cloning)
Usable with IOP, BOP-2 panels and USB connection
Energy-efficient, encoderless vector control - automatic flow reduction with V/F ECO
Safety (STO) included with no extra costs
Profibus, CAN, Modbus RTU and USS available

SINAMICS G120C – Typical Uses
Machine building; also for use in numerous further applications – for example, in mixers, conveyors, fans, pumps, compressors or basic production machines.

Accessories

Zatržené příslušenství bude vloženo do košíku s produktem

Akce Název zboží Atributy Cena bez DPH Proklik
6SL3201-0BE23-8AA0 SINAMICS brzdný odpor R=30 OHM, P jmenovitý=925W, P max=18500W/12S/5% zátěž, montáž STANDALONE ; 163,46 EUR Detail - 6SL3201-0BE23-8AA0
6SL3203-0CE23-8AA0 SINAMICS Vstupní tlumivka 380-480V 3AC 47-63HZ I_LN = 47,0A STANDALONE ; 103,05 EUR Detail - 6SL3203-0CE23-8AA0
6SL3254-0AM00-0AA0 Paměťová karta MMC ; 0,00 EUR Detail - 6SL3254-0AM00-0AA0
6SL3255-0AA00-4CA1 SINAMICS G120 Základní ovládací panel (BOP-2) ; 28,43 EUR Detail - 6SL3255-0AA00-4CA1
6SL3255-0AA00-4HA0 IOP Handheld. Součástí dodávky je:IOP, Skříň handheld, Akumulátory (4 AA), Nabíječka (mezinárodní), Propojovací kabel RS232 (délka 3 m, použitelný jen pro SINAMICS G120 a SIMATIC ET 200S FC), USB kabel (délka 1 m). Pro CU240E .. , CU240S .. Je nutná 6SL3255-0AA00-2AA1 (viz. příslušenství) ; 0,00 EUR Detail - 6SL3255-0AA00-4HA0
6SL3255-0AA00-4JA0 Inteligentní operační panel IOP ; 112,58 EUR Detail - 6SL3255-0AA00-4JA0
6SL3256-0AP00-0JA0 BOP2 / IOP - sada pro montáž na dveře ; 22,74 EUR Detail - 6SL3256-0AP00-0JA0
