6SL3223-0DE33-0

Documentation

Dokumentace na vyžádání

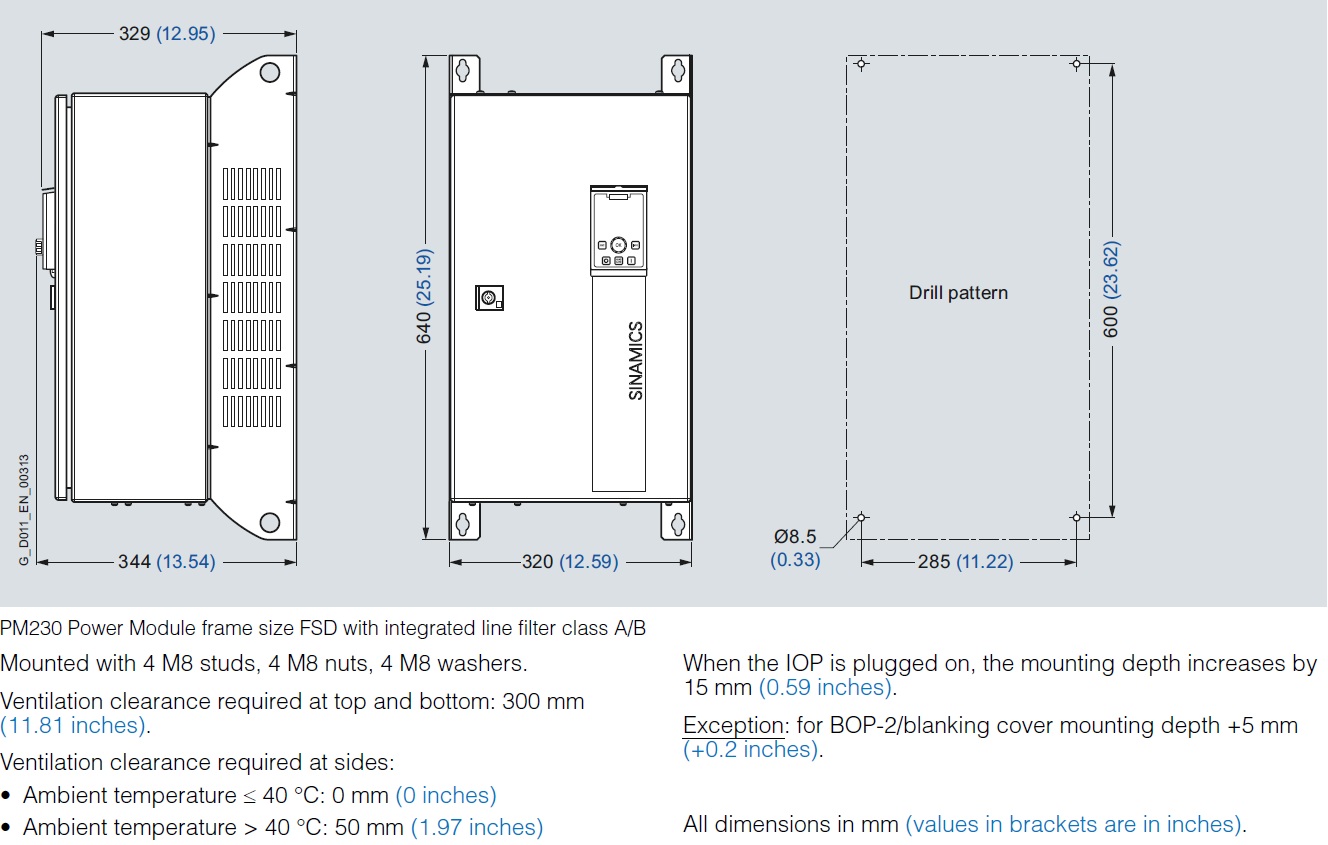

Dimensions

Description

SINAMICS G120P
Ideal for building automation, water and process industries. It has been specially designed for the industrial environment as well as for applications in heating, ventilation, and air-conditioning.The SINAMICS G120P is a cost-effective, efficient, and easy-to-operate frequency inverter for pumps, fans, and compressors with a wide range of functions.
SINAMICS G120P is build up as a modular inverter system consisting of Control Unit, Power Modul, and Operator Panel (IOP = Intelligent Operater Panel, or BOP-2 Basic Operator Panel) or blanking plate. The Control Unit supports communications to a local control as well as to monitoring devices and equipment. The Power Modul has a power range from 0.37 kW to 90 kW.

SINAMICS G120P – a brief Summary of its Strengths
SINAMICS G120P offers high user-friendliness:
Integrated application-specific wizard and macros for easy start-up and commissioning
Easy-to-use facilities for diagnostics and maintenance.

SINAMICS G120P offers functions to exploit energy efficiency in the entire process chain:
Low apparent power consumption thanks to efficient inverter topology.
Inverter efficiency >97%
Software functions such as eco mode, hibernation, bypass mode for optimum adjustment to the operating point
Efficient and consistent solutions via Totally Integrated Automation (TIA), consistency from SINAMICS through to the automation level

SINAMICS G120P – Typical Uses
The new SINAMICS G120P frequency inverter is the perfect solution for applications, such as closed-loop speed control for ventilation fans, circulating pumps for heating and cooling systems, booster pumps, or pumps for level control.
